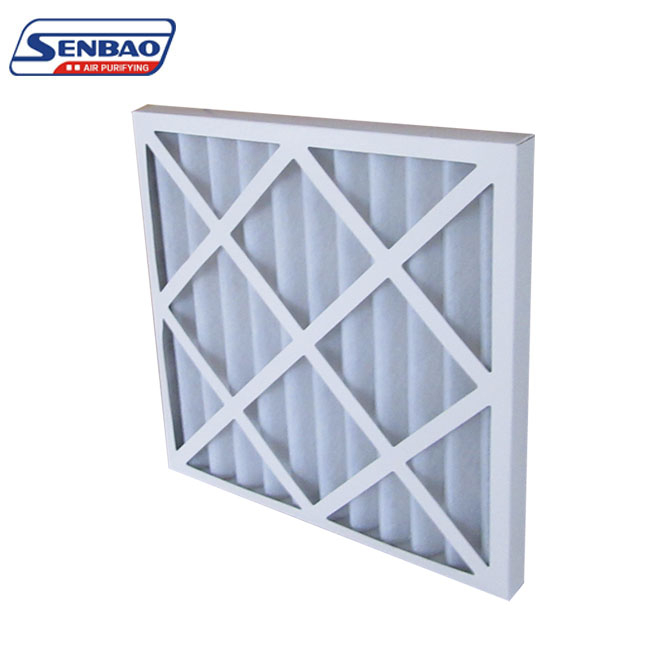

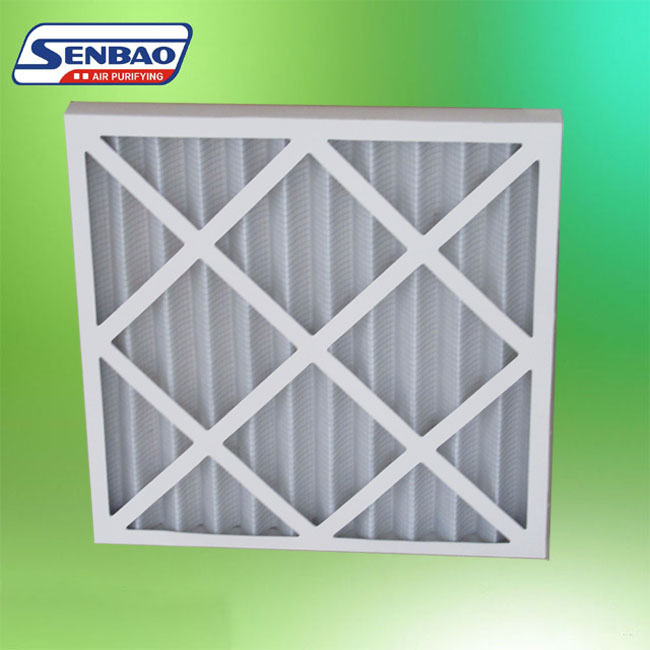

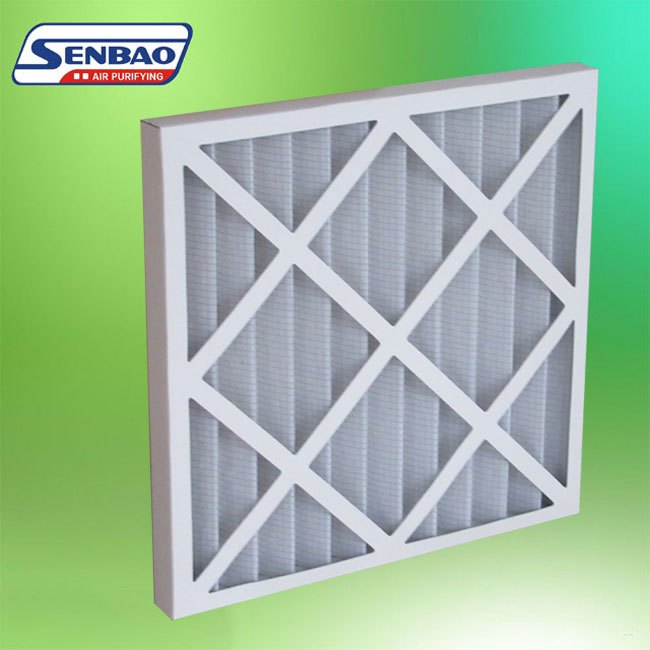

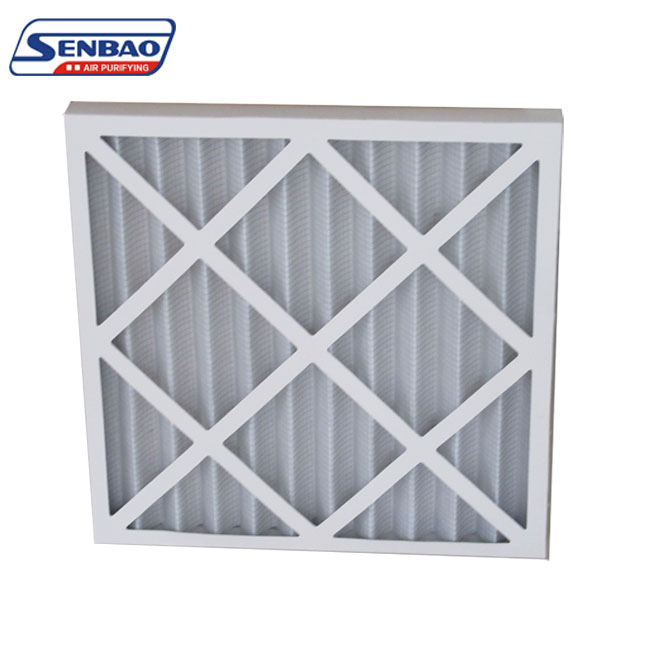

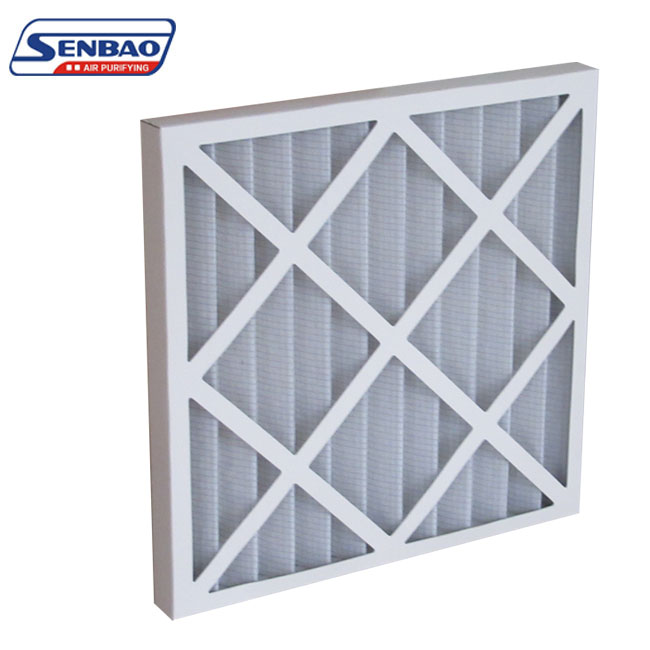

G3/G4 Paper Frame Pleated Pre-filter


Availability:

Quantity:

Inquire Add to Basket

This industrial HVAC air filter offers efficiency with a G3/G4 rating, suitable for various industries such as hotels,manufacturing plants, and food & beverage factories. The filter can be customized to meet specific user requirements.
The Pre Panel Air filter features a sturdy paper frame and a synthetic fiber panel.

G4 Paper Frame Pleated Pre-filter

Product Description

Features:

1.Large media area.

2.Great sealing property.

3.Large dust holding capacity.

4.100% Factory inspection.

Application

Used for primary filtration of the central air conditioning and household air conditioner.
For special ventilation system.

Material and Performance

Frame Material	Cardboard /Aluminum
Filter Medium	Synthetic Fiber
Protect nets	Galvanization net/Aluminum nets
Max. temperature	80°C
Max. humidity	80%RH

Specification and technical parameters

ModelNo.	Size(mm) (LWH)	Rated Air flow (m³/h)	Initial resistance (pa)	Efficiency
C-G3/G4	29059546	1700	≤30-45	85-90%(G3/G4)
C-G3/G4	49549546	2400
C-G3/G4	59549546	2800
C-G3/G4	59559546	3400
C-G3/G4	29059596	1700
C-G3/G4	49549596	2400
C-G3/G4	49559596	2800
C-G3/G4	59559596	3400
