G4 Pleated Pre-filter


Availability:

Quantity:

Inquire Add to Basket

Model:
G4 Pleated Pre-filter
Brand:
Senbao

This industrial HVAC air filter offers efficiency with a G4 rating, suitable for various industries such as hotels,manufacturing plants, and food & beverage factories. The filter can be customized to meet specific user requirements.

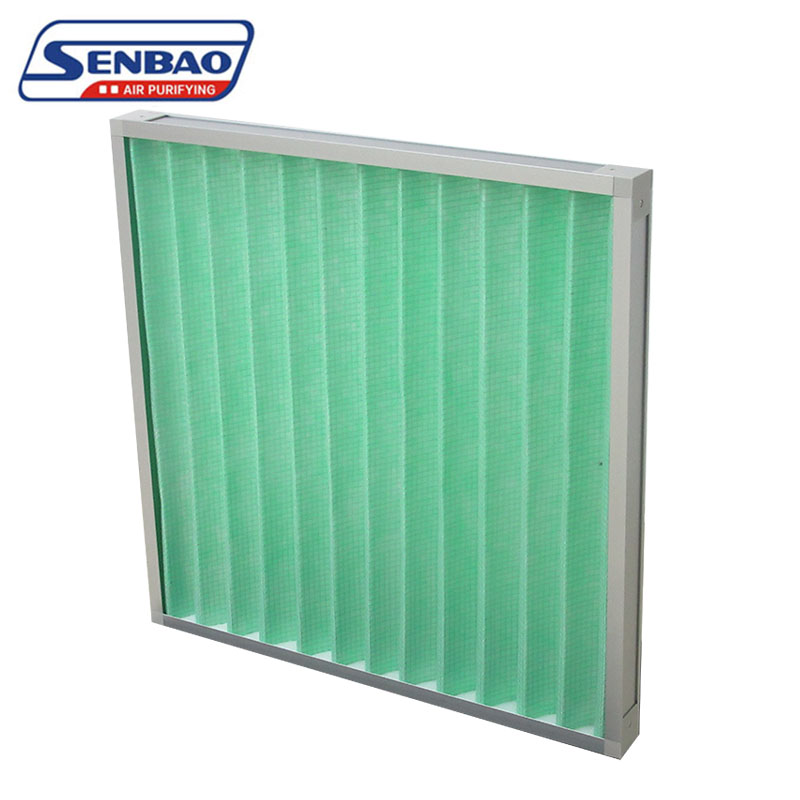

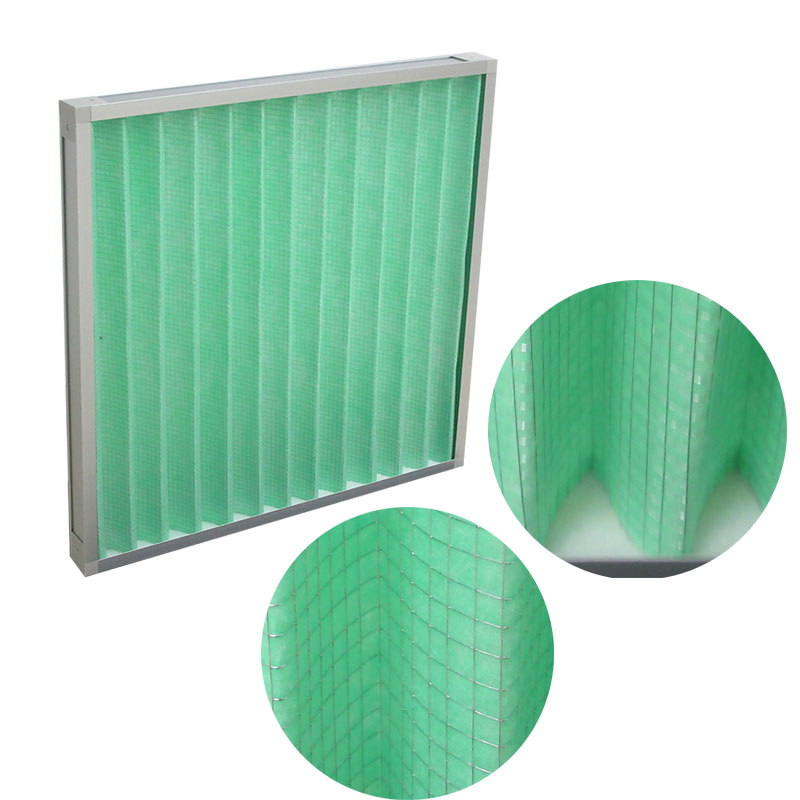

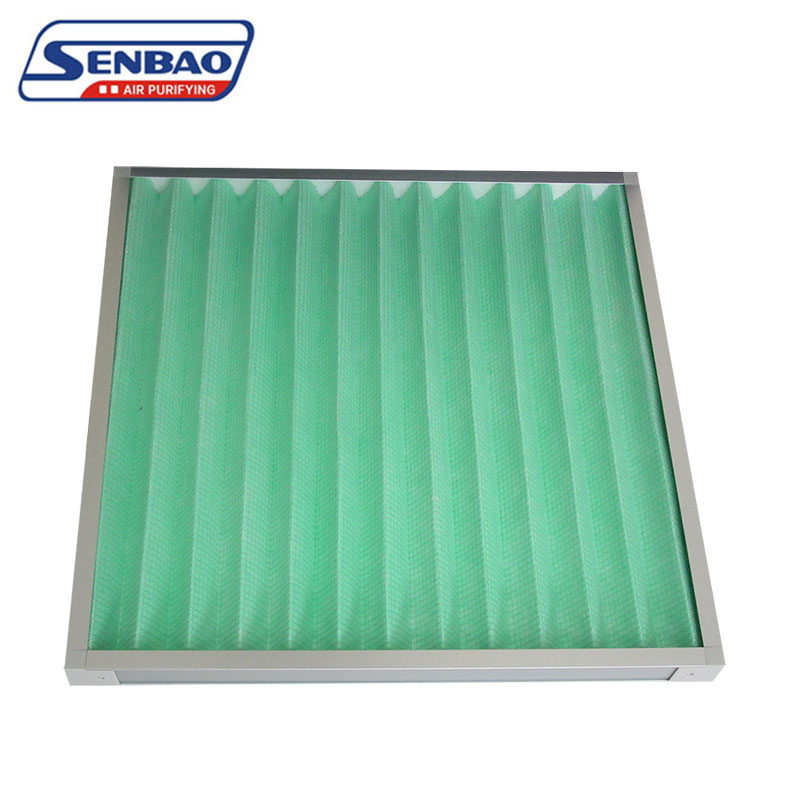

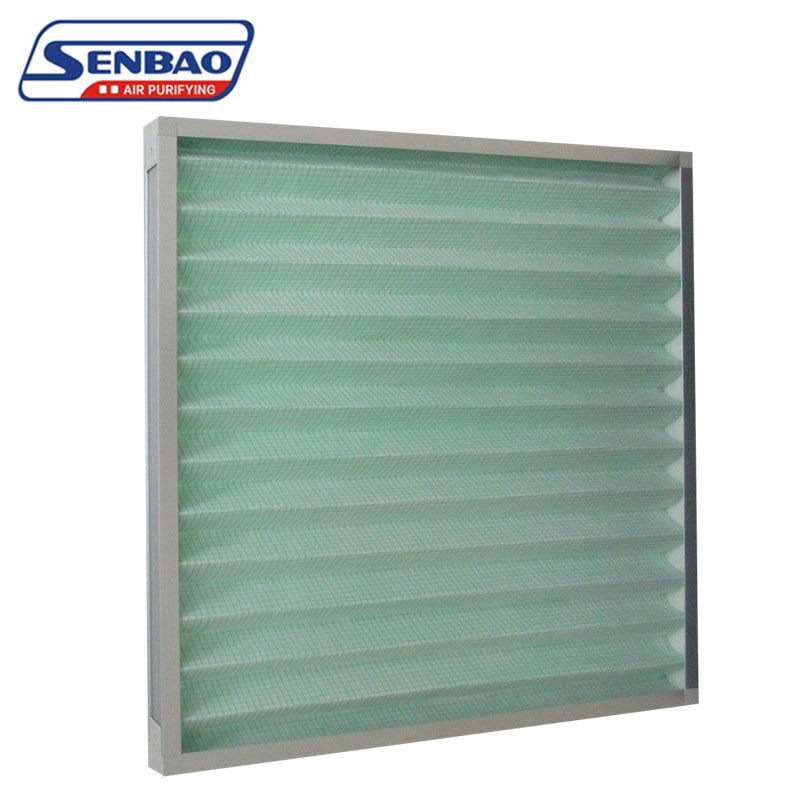

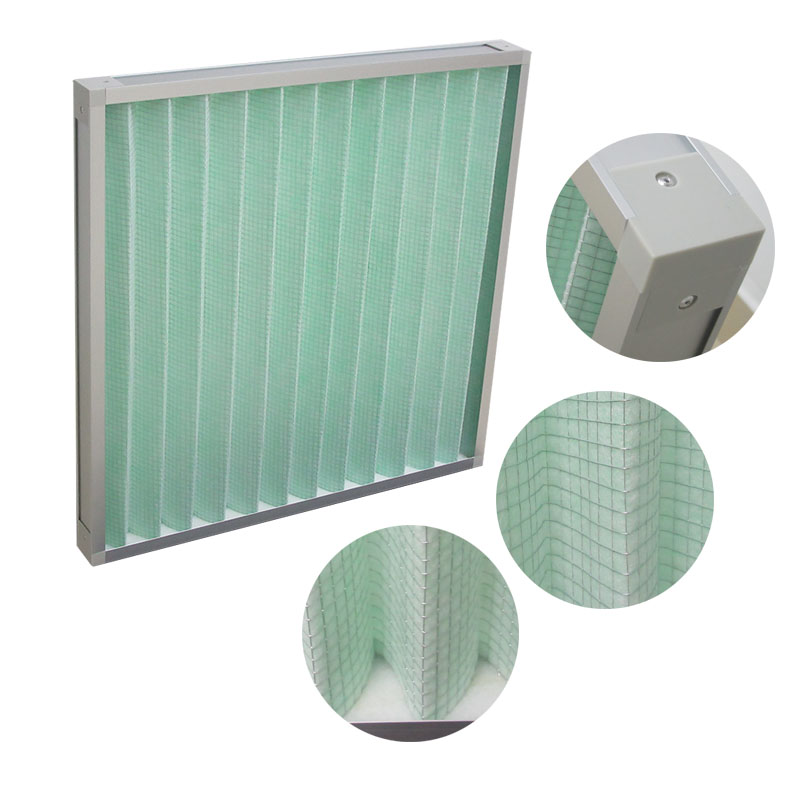

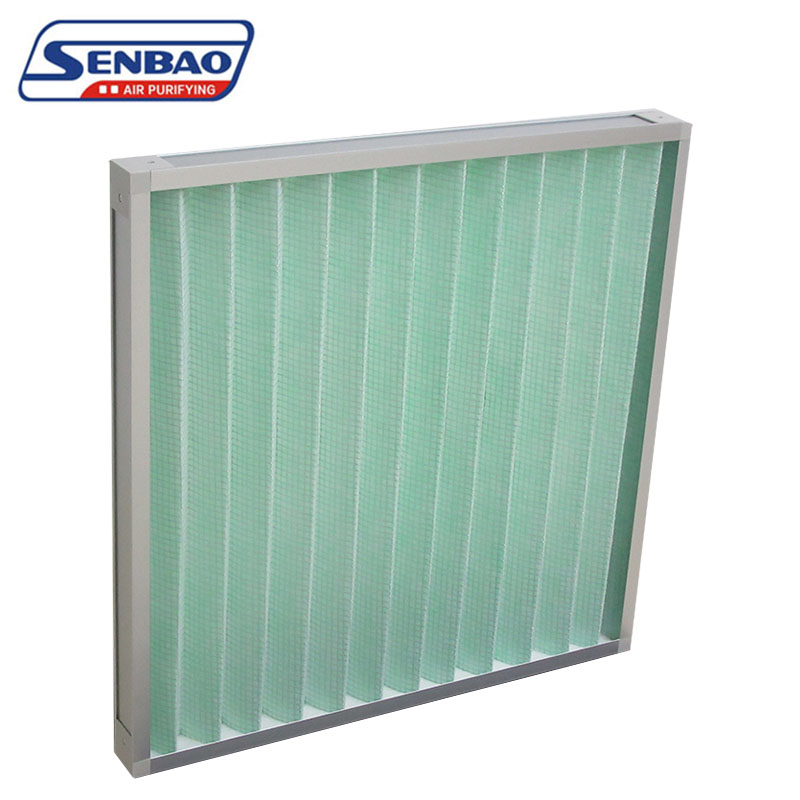

The G4 Pleated Pre Panel Air filter features a sturdy aluminum frame and a synthetic fiber panel, ensuring a long-lasting performance and easy maintenance.

Product Description

Features:

1.Large media area.

2.Great sealing property.

3.Large dust holding capacity.

4.100% Factory inspection.

Application

Used for primary filtration of the central air conditioning and household air conditioner.
For special ventilation system.

Material and Performance

Filter Medium	Synthetic Fiber
Protect nets	Galvanization net,aluminum nets
Max. temperature	80°C
Max. humidity	80%RH

Specification and technical parameters

ModelNo.	Size(mm) (LWH)	Rated Air flow (m³/h)	Initial resistance (pa)	Efficiency
C-G4	29059546	1700	≤75	90%(G4)
C-G4	49549546	2400
C-G4	59549546	2800
C-G4	59559546	3400
